Hump Type Support Plate

Time:
2025-07-27 22:07:57
View:
2756

Product Description

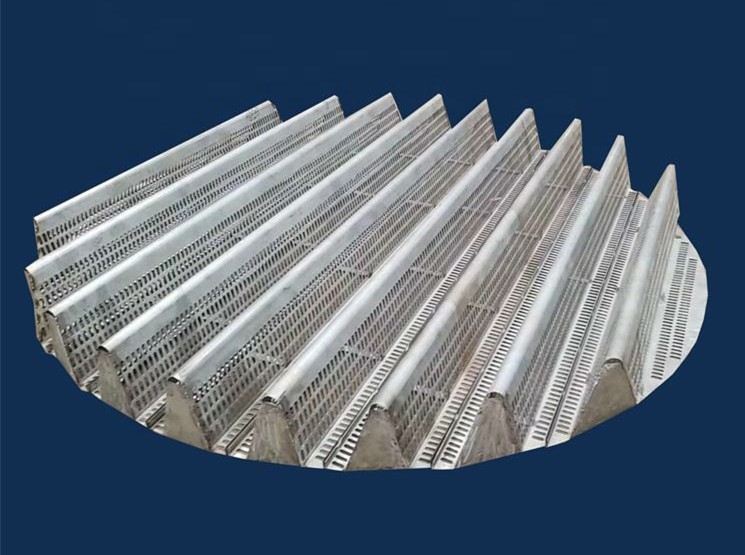

The  hump type support plate for Tower is a critical component designed to support granular fillers in various industrial towers, including applications in oil refining, chemical processing, fertilizer production, ethylene manufacturing, and oxygen production. It is widely used in large tower systems with a diameter over 10 meters and provides stable support for the filler bed layer, ensuring optimal fluid dynamics and structural stability.The primary function of multibeam support or hump type support plate is for the support of the tower packing plus the weight of the liquid holdup.They also should prevent fluidization of the packed bed top surface.  multibeam support or hump type support plate devices are fastened to the column wall or restrained by the column internal located above it.


characteristics:

1.Free sectional surface area has exceed 100%

2.To provide different channels for gas & liquid contacting,avoid intervening intervention.

3.Big Fluid Flux

4.Evenly Gas & Liquid distribtion.


Our Advantages

  • Good Rigidity: Capable of supporting large loads, providing solid structural support.

  • Excellent Fluid Dynamics Performance: Optimizes fluid flow, ensuring maximum efficiency in the tower.

  • Supports the Weight of the Packing Bed: Effectively supports the packing bed under operational conditions, preventing uneven pressure distribution.

  • Minimal Clogging: Filler particles or fragments are not easily clogged at the orifice, ensuring smooth fluid flow. For particles smaller than Φ300mm, large fillers can be placed on the support plate first, followed by smaller fillers stacked on top.

  • Lightweight and Material-Saving: Made from materials like metal, plastic, ceramics, and graphite, providing an efficient and cost-effective solution.

  • Unitized Structure for Easy Installation: The unitized design allows for easy installation from the manhole, simplifying the installation process.

  • Three-Dimensional Support Plate Structure: Helps increase the opening area, with an opening rate of around 99%. This ensures that the opening rate exceeds the porosity of the packing layer, preventing the formation of "bottleneck" areas that could reduce tower load.


Applications

The Hump Type Support Plate for Tower is a high-performance, widely used tower support for granular fillers, especially in industries such as oil refining, chemical processing, fertilizer production, ethylene manufacturing, and oxygen production. It is commonly used in large towers with diameters over 10 meters.
