Metal Wire Gauze Packing

Time:
2024-10-11 13:44:07
View:
2354

Product Description

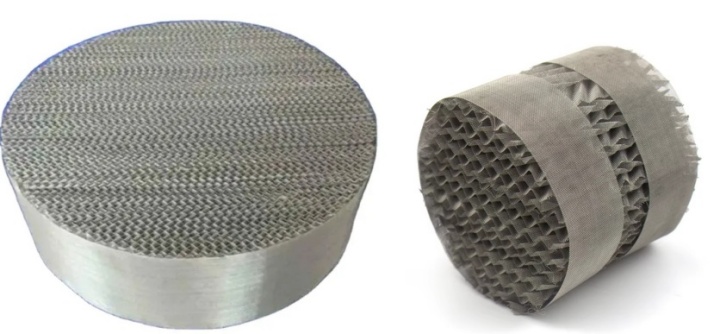

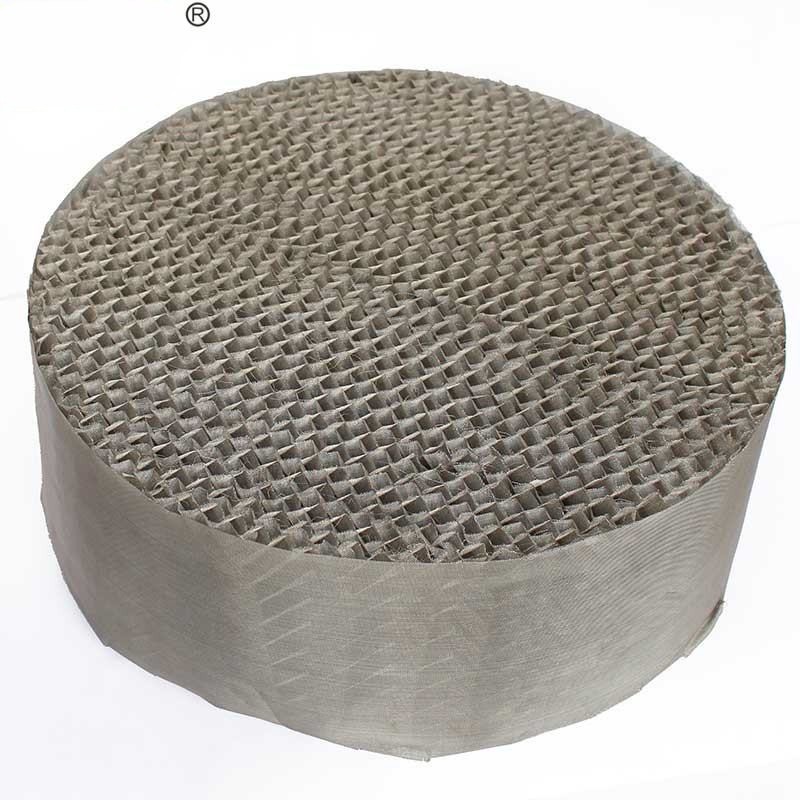

metal wire gauze packing was original invented by Sulzers in 1960s, it's available in a wide range of materials, include stainless steels, 304, 316, 316L,carbonsteels. aluminium, copper bronze etc. Further materials available on request. metal wire gauze packings will provide large surface area, it also  characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.

250AX Precision rectification for high productive capacity and less theoretical plate number. 500BX Vacuum rectification for thermosensitive system and hard separation system, especially suitable for rectification with pressure lower than 7KPa .700CY Separation of isotopic compound and isomeric compound.

Key Features

1. Large surface area,High void fraction,Low weight
2. Small Gas-liquid Channel's Angle
3. Good Radial diffusion,fully Gas-liquid contacting
4. Low overall height

Specification:

TypeSpecific areaVoidTheo.PlateHETPMax.F factor
m2/m3%Piece/mmmm/s.(kg/m3)0.5
250X/Y250952.5-31002.5-3.5
500X/Y500904-52002.0-2.4
700X/Y700858-10333-4001.5-2.0

We manufacture custom metal wire gauze packings for a variety of applications. To place an order or request a quote, please don't hesitate to contact us.

Material: AISI304, AISI304L, AISI316, AISI316L, carbon steel, etc.

Applications

Due to its high separation efficiency, low pressure drop, and small liquid hold-up, metal wire gauze packing is widely used in purification, extraction, distillation, cooling, and other processes across various industries including chemical, petrochemical, metallurgy, pharmaceuticals, and light industry.

  • 250 (AX): Suitable for high-capacity precision rectification with fewer theoretical plates.
  • 500 (BX): Ideal for vacuum rectification of thermally sensitive or hard-to-separate systems, especially at pressures below 7 KPa.
  • 700 (CY): Used for separating isotopic and isomeric compounds.

Note: Wire gauze structured packing is not suitable for fouling services or strongly corrosive media.
