Product Description

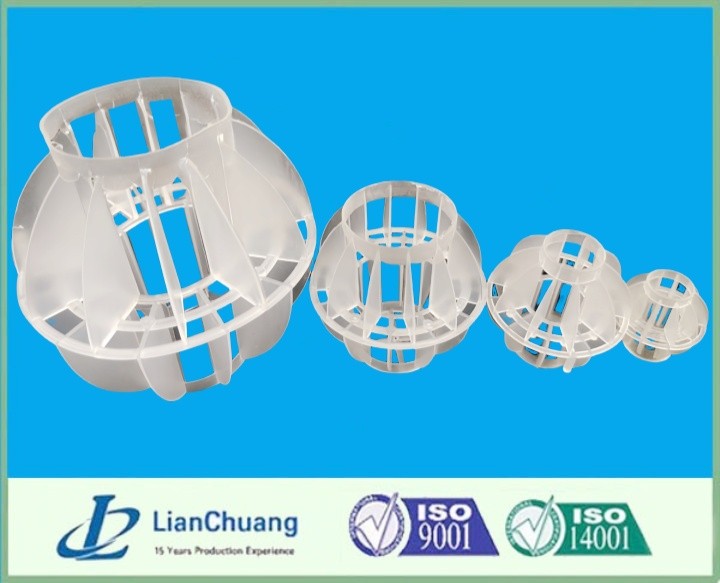

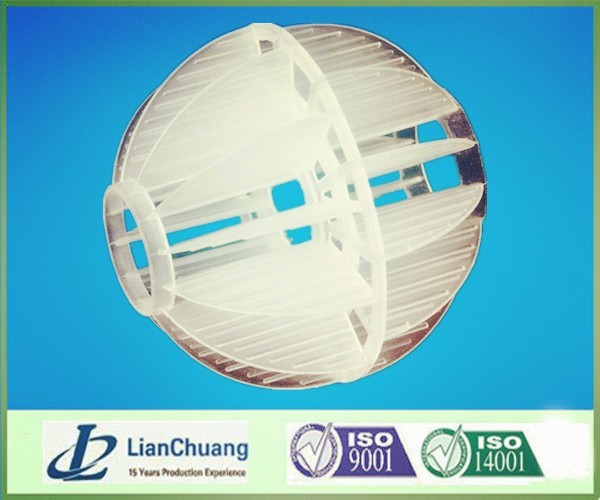

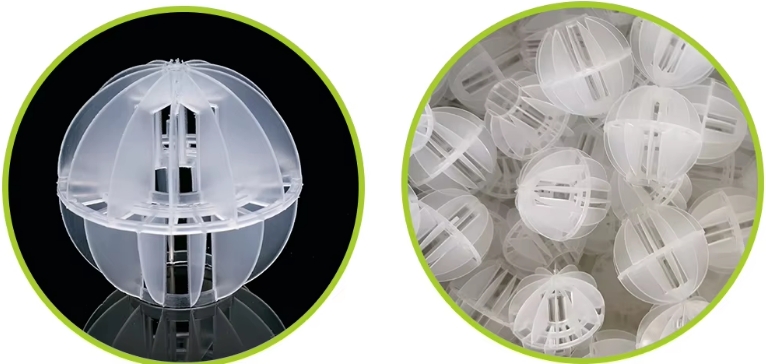

Plastic polyhedral hollow ball ( PP,PE,RPP,PVC,CPVC,PVDF ) is also called plastic multi-aspect hollow ball tower packing. Polyhedral Hollow Ball packing composed of two hemispheres which will form into a ball. And each hemisphere consists of a number of half fan-shaped leaves, the upper and lower leaves in a staggered arrangement. The design concept is advanced and the structure is reasonable.
Plastic polyhedral hollow balls have the virtue of light weight, wide free space, small wind resistance, and good surface hydrophilic, big full wet surface area and convenient filling in the equipment and sound usage effect. Plastic polyhedral Hollow Ball can be used in sewage treatment, desulfurization of CO2 in power plant, desulfuration and purified water tower packing. Plastic multi-aspect hollow ball is a new type of high-efficiency tower packing applied in water treatment equipment. The domestic power, chemical industry, papermaking and environmental protection industries have made use if in the equipments of desulfurization carbon and acid, oily-water separating, seawater desalination, purified and waste water treatment.
Technical Data:
size | specific area | void rate | bulk number | bulk weight |
mm | m2/m3 | % | No/m3 | kg/m3 |
Φ 25 | 460 | 84 | 64000 | 70.4 |
Φ 38 | 312 | 87 | 25000 | 75 |
Φ 50 | 237 | 90 | 11500 | 80.5 |
Φ 76 | 214 | 92 | 3000 | 59 |
Φ 100 | 261 | 92 | 1800 | 50.4 |
Properties of Plastic Material:
Performance / Material | PE | PP | RPP | PVC | CPVC | PVDF |
Density (kg/m3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
Operation Temp.(Degree C) | 90 | >100 | >120 | >60 | >90 | >150 |
Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
Compression Strength(Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |

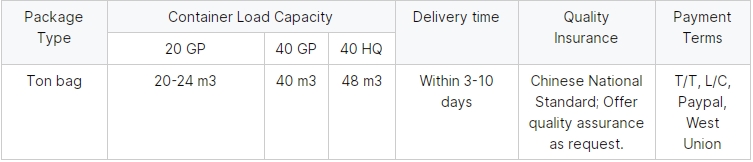

Package&Shipping:
Our advantage:
1.More than 10years manufacturing exper experience.
2.ISO9001:2008 certification available.
3.Reasonale price and good service.
4.Free Sample is available, shipping and taxes paid by buyer.
