A well-designed garden pond, koi pond, or architectural water feature lives and dies by water quality. At the heart of every reliable water-care setup is an integrated suite of media layers that intercept suspended solids, host beneficial microbes, and adsorb dissolved contaminants. This article presents a full, practical guide to modern pond media filters: what they are, how they work, the major media categories, how to size and install them, and how to maintain long-term stability across seasons.
What Is a Pond Media Filter?
A pond media filter is not a single device but the core pack of media layers that sit inside a pressure canister, gravity-flow chamber, moving-bed vessel, or modular waterfall box. These layers are selected and stacked to deliver complementary functions. Mechanical elements strain out leaves, uneaten food, and detritus; high-surface-area substrates cultivate nitrifying communities that convert toxic ammonia and nitrite; and specialized media beds polish the water by adsorbing dissolved organics and odor-causing compounds.
In contemporary pond design, the media pack is engineered as a system rather than a bag of parts. The idea is to control hydraulics (flow velocity, contact time, headloss) and biology (colonization, oxygen transfer, biofilm stability) in a predictable, serviceable module that integrates neatly with your pump loop and return.
How It Works: Three Complementary Filtration Modes
1) Mechanical Interception
Water first meets coarse panels, intake screens, brushes, or graded foams that trap larger particles. This keeps later stages from clogging and improves hydraulic distribution. Think of this as the “pre-filter” that prevents fines from short-circuiting the system.
2) Biological Conversion
After gross solids are removed, flow passes through media with very high protected surface area where nitrifying bacteria attach and form biofilms. These communities oxidize ammonia (NH3/NH4+) to nitrite (NO2−) and then to nitrate (NO3−). Stable conversion is the backbone of fish safety and algal balance, because even short spikes of ammonia or nitrite can stress or kill aquatic life. Materials that provide intricate pores and channels support robust colonization and oxygen access while resisting compaction.
3) Chemical Polishing
Finally, selective media beds remove dissolved contaminants—tannins that discolor water, off-odors, residual medications, or spikes of specific ions. These beds are typically placed last to keep their surfaces clean and active for longer intervals.
Rule of thumb: For most residential ponds, design the loop so the entire pond volume circulates through the filter about 1–2 times per hour. This keeps bacteria oxygenated and prevents dead zones where waste can accumulate.
Core Media Categories and Typical Use Cases
Mechanical Media
- Brushed inlets and screens: Excellent as a debris gate at the head of the filter path; easy to hose off without dismantling the whole unit.
- Graded pads and foams: Coarse pads catch big particles with low headloss; finer pads “polish” the flow, increasing clarity before it reaches the bio bed.
- Sand & gravel stacks: In downflow or upflow bins these create depth filtration that captures fines while distributing flow evenly across the bed.

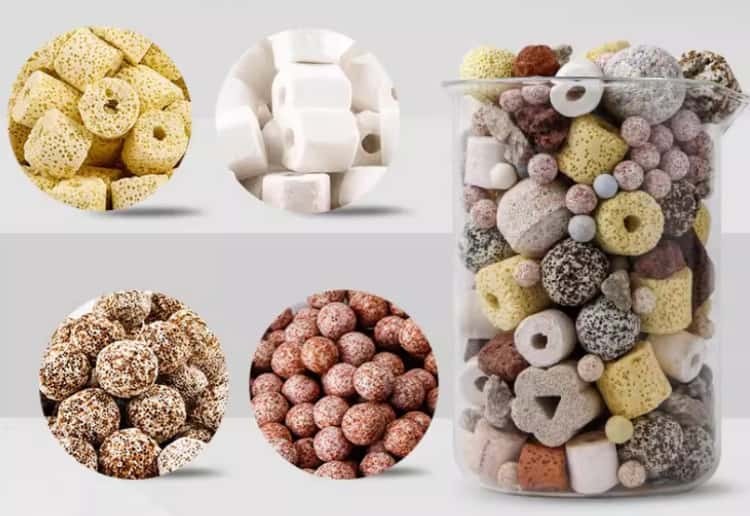

Biological Substrates
- Structured plastic elements: mbbr media, Open-frame spheres, cubes, and honeycomb blocks provide predictable void space and high wettable area; they resist clogging and are lightweight to service.
- Ceramic and sintered glass: Micro-porous matrices offer enormous internal area and strong biofilm protection; ideal where you want maximum nitrification stability in compact volumes.
- Mineral media: Certain volcanic minerals offer texture and buffering properties that support steady colonization and pH resilience.
Chemical/Targeted Media
- Activated carbon: Adsorbs tannins and dissolved organics to restore sparkle and remove odors after medications or sudden die-offs.
- Ion-exchange or specialty resins: Handy for short-term control of specific ions or emergency spikes when stocking density is high.
Tip: Layering matters. Place the easiest-to-clean mechanical pieces first, protected bio surfaces in the middle, and the most selective polishing media last. This maximizes service intervals and performance.
Why Media-Based Filtration Works So Well
- Consistent clarity: By separating dirt capture from biological conversion, you avoid clogging the bio bed and keep turbidity low even during heavy feeding or windy leaf fall.
- Fish health and resilience: Stable nitrification prevents toxic spikes, reduces stress, and curbs disease outbreaks.
- Operational flexibility: You can tune the stack—swap a foam grade, add more structured blocks, or rotate a polishing cartridge—without rebuilding the filter body.
- Cost-effective lifecycle: Most substrates are washable and long-lived; only the targeted polishing media need periodic replacement.
- Environmental alignment: Emphasis on bacterial ecology and physical capture reduces reliance on shock chemicals while improving overall ecosystem balance.
Sizing, Flow, and Hydraulic Design
Correct sizing is as important as media choice. Start by estimating your true pond volume (length × width × average depth, adjusted for shelves and rock displacement). Stocking density, feeding rate, and sunlight exposure all affect the bio load you must process. A lightly stocked, shaded ornamental pond tolerates a smaller bio bed than a densely stocked koi system under full sun.
- Pump turnover: Aim for 1–2 pond volumes per hour through the media pack, with margin for head losses created by plumbing, elevation, and media resistance.
- Contact time: Avoid blasting flow so fast that water short-circuits channels; conversely, avoid starving the bed of oxygen. Even distribution plates, perforated manifolds, or spray bars are simple fixes.
- Redundancy: In high-value fish setups, split the loop across two parallel filter trains so service on one train doesn’t stall the entire biology.
Installation: Layering the Media for Performance
- Select the filter vessel: Pressure canisters are compact and easy to hide; gravity bays provide generous volume and gentle velocities; moving-bed reactors keep bio elements in motion for high oxygen transfer.
- Load the stack from intake to return: Put coarse mechanical pieces first, then the protected biological bed, then the polishing cartridge or tray.
- Plumb for smooth flow: Use appropriately sized flexible PVC or hard pipe; keep bends shallow; include unions and valves for isolation and easy service.
- Seed gently: After cleaning dust from new substrates, inoculate with a trusted starter and begin feeding the system lightly to build colonies without spikes.
Maintenance: Keep the System Efficient Without Resetting Biology
- Service cadence: Rinse mechanical pads/brushes whenever flow visibly drops or after storms and heavy feeding. Avoid aggressive chlorinated cleaning; a quick hose-down is usually enough.
- Protect the bio bed: Swish biological elements in a bucket of pond water during annual checks; never scrub to a “brand-new” look, as that strips protective films.
- Replace polishing media: Activated carbon and specialty resins have finite capacity; swap them on schedule or after medication cycles.
- Winterizing: In freezing climates, bypass waterfall runs that chill water, and store delicate cartridges dry. Keep an aeration source active to maintain oxygen in deeper zones.
Troubleshooting Common Issues
- Persistent green water: Verify turnover and sun exposure; increase fine mechanical polishing and review nutrient inputs. Consider adding a UV clarifier in line with the media loop if blooms are seasonal and intense.
- Ammonia or nitrite detectable: Overfeeding, new-system syndrome, or a bio bed shocked by cleaning can all be culprits. Reduce load, add supplemental aeration, and let the bacterial community re-establish.
- Flow collapse: Check for leaf mats at skimmers, pad clogging, or collapsed hoses. Clean intake stages before diving into deeper rework.
- Odors or tea-colored water: Replace or regenerate polishing media; vacuum settled organics from the bottom; confirm circulation reaches coves and shelves.
Buying Guide: Matching Media to Your Pond Goals
If your priority is crystal-clear display water
- Use a staged mechanical train (coarse → medium → fine) ahead of bio substrates.
- Add a modest polishing tray to catch dissolved color and odor after storms or spawn events.
If your priority is fish growth and safety
- Maximize protected surface area with clog-resistant structures and ensure vigorous aeration.
- Split flow across dual beds for resilience during maintenance or power interruptions.
Pro tip: Keep a small spare crate of clean mechanical pads. Swapping a dirty pad for a clean one during service keeps the loop running while you rinse—minimal downtime, minimal stress.
FAQs
How often should I clean the filter?
Clean mechanical stages as needed—weekly in leaf season, monthly in calmer periods. Inspect biological substrates a few times per year and handle gently. Replace only the targeted polishing media per manufacturer guidance.
Do I need chemical media all the time?
Not necessarily. Many keep a polishing tray on standby and deploy it after events that release dissolved organics. Continuous use is optional and depends on aesthetic goals.
Can I build a DIY stack?
Absolutely. Many hobbyists use modular crates with graded foams, followed by structured bio blocks, and a small cartridge tray. Focus on even flow distribution and serviceability, not just the media list.
Conclusion
Media-based pond filtration unites physics, microbiology, and selective adsorption into a compact, serviceable package. By staging interception, conversion, and polishing in the right order—and by sizing the bed to match your bio load—you create a pond that looks great and runs quietly in the background. Whether you keep a tranquil water garden or a high-energy koi collection, a thoughtfully designed media stack is the most reliable path to clear water, healthy fish, and a resilient, low-stress ecosystem
