Product Description

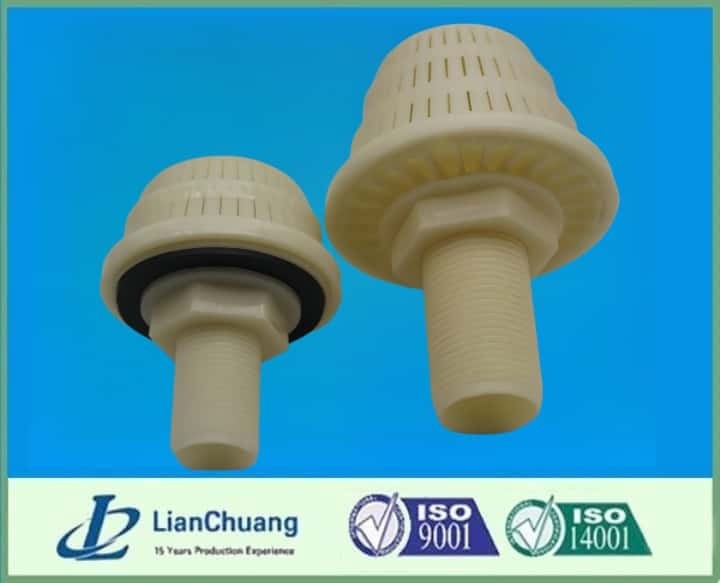

The filter nozzle is made of high-quality PP or ABS plastic and consists of four parts: filter cap, filter stem, embedded casing, and anti-blocking cap. The specially designed backwash filter nozzle has a total length of 420mm, which is longer than standard nozzles. The filter plate is made of reinforced concrete, and both components are used together in biological filters.
The pp abs water nozzle is an essential part of the water distribution system at the bottom of the filter backwash unit. It effectively removes sludge and debris from the filter media, ensuring stable water quality. These plastic sand filter nozzles for water treatment are available in various shapes such as mushroom, plum blossom, tower, and cylindrical, with long or short handles. Made from ABS engineering plastic, they feature a solid structure, tight connection, high pressure resistance, and consistent slot gaps, preventing dead water zones and sludge buildup in the filter system.
Long-handle nozzles are commonly used in soda water backwash distribution systems in filter tanks, while short-handle nozzles are applied in single water backwash, gravity, pressure-type filters, ion exchange beds, and other water treatment systems. The filter caps are widely used for advanced purification of municipal drinking water and industrial water, particularly in high-purity and mineral water production. They effectively remove COD, pigments, odors, and toxic substances from water.

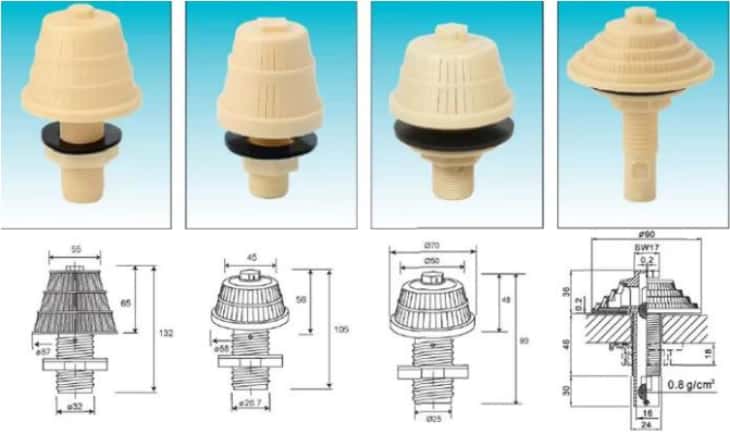

Filter nozzles and caps are categorized by flow rate (0.25T/H, 0.5T/H, 1T/H, 2T/H), handle length (short, medium, long), shape (tower, hemispherical, plum blossom, disc), and thread type (external or internal). Various models of pp abs water nozzle are available to suit different system needs.
Product Features
- High filtration efficiency: Precisely designed slots ensure uniform water distribution and improved filtration results.
- Durability: Made from PP material with excellent corrosion and heat resistance for long-term use.
- Eco-friendly: Non-toxic, all-plastic construction, safe for drinking water applications.
- Wide adaptability: Suitable for filtration, purification, and water circulation systems.
- Easy installation and maintenance: Simple structure allows for quick installation and minimal maintenance.
Model & Specifications
| Model | Flow Rate (T/H) | Dome Slot Width (mm) | Snap Ring Diameter (mm) | Stem Thread | Stem Diameter & Height (excluding dome) (mm) |
|---|---|---|---|---|---|
| CH-1 | 0.5 | 0.4 | / | 3 | 29 / 240 |
| CH-2 | 0.25 | 0.3 | 25 | 1.5 | 20 / 43 |
| CH-3 | 1 | 0.25 | 60 | 1.5 | 32 / 50 |
| CH-4 | 0.5 | 0.4 | / | 3 | 29 / 100 |
| CH-5 | 0.5 | 1 | 45–46 | 1.5 | 25 / 48 |
| CH-6 | 0.5 | 0.25 | 46 | 2.5 | 23 / 48 |
| CH-7 | 0.5 | 0.25 | 45–46 | 1.5 | 25 / 48 |
| CH-8 | 0.5 | 0.25 | 54–55 | 1.5 | 20 / 58 |
Application Fields
Plastic sand filter nozzles for water treatment are widely used in various filtration and drainage systems. They are suitable for sand, anthracite, activated carbon, concrete, and ion exchange resin media.
- Water treatment plants: Remove suspended solids and contaminants to improve water quality.
- Industrial wastewater treatment: Recycle and reuse process water, reducing costs.
- Agricultural irrigation: Purify irrigation water and prevent soil pollution.
- Environmental protection systems: Assist in removing harmful substances from water.
