Product Description

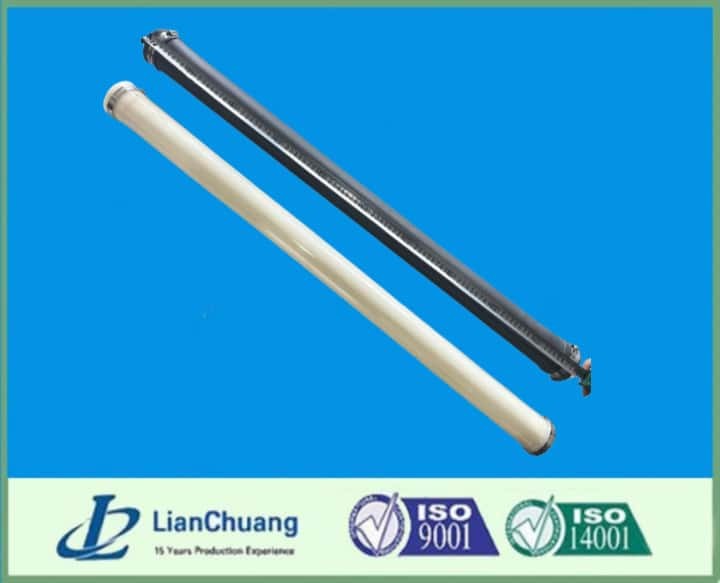

The micro bubble pipeline aerator pipe diffuser is a high-efficiency solution for diffused aeration systems, designed to deliver fine and uniform oxygen transfer in municipal and industrial wastewater treatment applications. These bubble diffusers are engineered with premium EPDM, Silicone, or TPU membranes and are compatible with ABS, PVC, or PP support tubes, which can be reused when replacing the membranes. The membranes are perforated with precision micro-holes that automatically open during air supply and close when the air stops, preventing sewage and debris from entering the pipeline and ensuring a non-clogging operation. This unique self-sealing feature provides reliable performance, extended service life, and reduced maintenance costs.
Available in multiple configurations, the fine bubble diffuser design offers optimal oxygen transfer efficiency with low headloss, making it one of the most cost-effective aeration diffusers for wastewater treatment plants, aquaculture, and clean water applications. Depending on your system requirements, these units can be installed singly or in pairs on rectangular and round pipelines using either standard nipple pipe connections or bolted saddle connections, providing versatility and ease of installation.
Product Parameters
| Type | φ65 | φ90 | φ110 |
|---|---|---|---|
| Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
| Membrane Material | EPDM / Silicone / TPU | ||
| Connector | 1'' NPT male thread / 3/4'' NPT male thread | ||
| Bubble Size | 1-2mm | 1-2mm | 1-2mm |
| Design Flow | 1.7-6.8m³/h | 3.4-13.6m³/h | 3.4-17.0m³/h |
| Flow Range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
| SOTE (6m submerged) | ≥40% | ≥40% | ≥40% |
| SOTR | ≥0.90kg O₂/h | ≥1.40kg O₂/h | ≥1.52kg O₂/h |
| SAE | ≥8.6kg O₂/kW.h | ||
| Headloss | 2200-4800Pa | ||
| Service Area | 0.75-2.5m² | 1.0-3.0m² | 1.5-2.5m² |
| Service Life | >5 years | ||
Membrane Material Options
- EPDM Membrane: Manufactured with low plasticizer content and precision perforations of 1mm or 2mm. Advanced compression molding technology with vacuum control ensures high consistency and durability.
- Silicone Membrane: Provides exceptional high-temperature and chemical resistance. Resistant to tearing and creep while generating fine bubbles with low headloss, ideal for demanding wastewater environments.
- TPU Membrane: Flexible and lightweight, designed for efficient oxygen transfer and long-term stability.
Connection Options
- Standard Connection: Compatible with standard nipple pipe fittings, ensuring easy integration into existing diffuser bubbler systems.
- Bolted Saddle Connection: Suitable for 40mm and 50mm pipes, making it a reliable choice for retrofitting other pipeline diffuser systems.
Applications
- Municipal wastewater treatment plants
- Industrial wastewater treatment
- Clean water treatment
- Sludge stabilization
- Ozone diffusion in wastewater
- Aquaculture, fish ponds, streams, and lakes aeration
- Oxygenation of activation basins
- CO₂ neutralization processes
Key Advantages
- Anti-clogging and corrosion resistant design
- High oxygen transfer efficiency with micro bubble diffuser technology
- Simple installation (2 minutes per diffuser)
- Low total investment cost
- Maintenance-free with service life up to 8 years
- Consistently reliable performance with premium membranes
Packaging & Shipping
Each bubble aerator and fine bubble tube diffuser undergoes strict quality testing before delivery. Secure and professional packaging ensures safe shipment and stability during transportation. Fast delivery options are available to minimize downtime for your diffused aeration systems.
