ss304 321 316L stainless steel pall ring

Time:
2021-01-16 07:22:26
View:
2695

Product Description

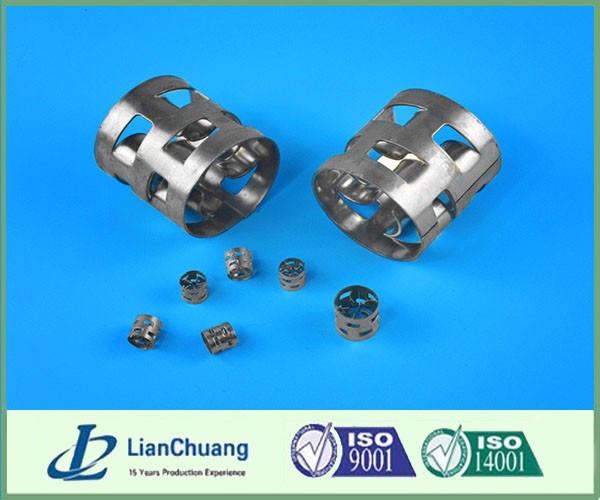

Stainless pall rings are an advancement on the Raschig Ring, with similar cylindrical dimensions but with two rows of punched out holes, with fingers or webs turned into the centre of cylinder.ss304 321 316L pall ring is the metal pall ring?with stainless stell material, ss304 321 316L stainless steel pall ring has features of thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.304 pall ring, stainless steel pall ring, 316L pall ring also have good liquid and gas distribution, mechanically robust, it's suitable for deeper beds. Stainless steel pall ring,304 pall ring, 316L pall ring is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Stainless Pall Rings Applications:
1.Various Separation and Absorption Applications
2.Absorption and Stripping Services
3.Steam Stripping
4.Quench Towers
5.Direct Contact Cooling
6.Reaction Towers
7.Distillation Columns
8.Tower Packing



Technical Data:

    Size

Bulk density

Number per m3

Surface area

Free volume

    (mm)

(kg/m3)

(pcs/m3)

(m2/m3)

(%)

16*16*0.3

341

214000

346

95.5

25*25*0.4

285

52380

212

96.2

25*25*0.5

367

52380

216

95

25*25*0.6

449

52380

219

94.2

38*38*0.4

191

15200

143

97.2

38*38*0.5

262

15200

145

96.7

38*38*0.6

301

15200

146

95.9

50*50*0.5

191

6820

106

97.5

50*50*0.7

285

6820

108

96.4

50*50*0.9

365

6820

109

95.4

76*76*0.8

199

1850

69

97.4

90*90*1.0

229

1220

62

97.1


Material:

stainless steel 304, 304L, 410,316, 316L.
