Product Description

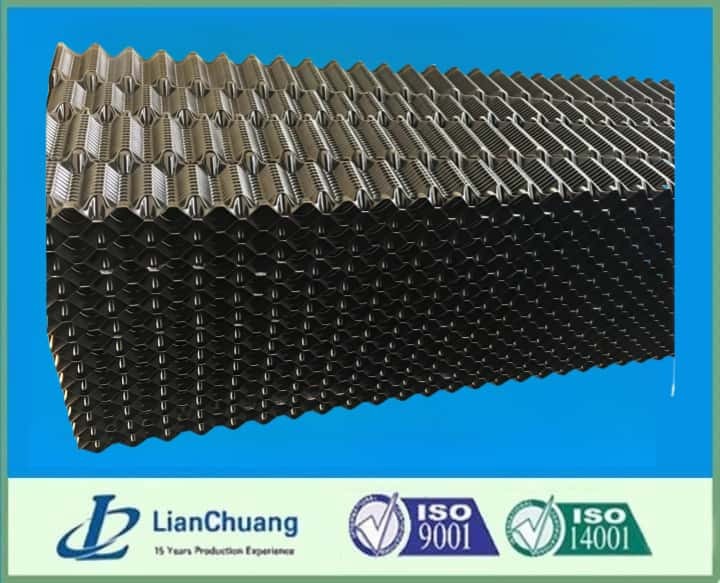

The Vertical Counter Fluted Flow Cooling Tower Honeycomb PVC Film Fill is engineered to enhance heat exchange in cooling tower systems with exceptional efficiency. Featuring a unique honeycomb design, this fill optimizes both water distribution and air flow, significantly boosting cooling performance. It is specifically designed to meet the requirements of industries that rely on reliable cooling tower performance under diverse environmental conditions.

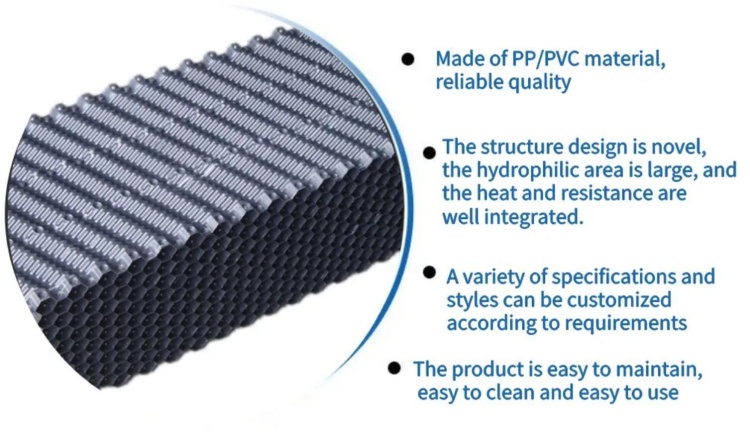

Key Features:
- Advanced Honeycomb Design: The honeycomb pattern maximizes the surface area for heat transfer, ensuring optimal thermal performance.
- Vertical Counter Flow Configuration: With a counter flow design, water flows in the opposite direction of airflow, promoting effective heat dissipation while reducing energy consumption.
- Durable PVC Material: Manufactured from high-quality PVC, this fill is highly resistant to corrosion and UV damage, ensuring long-lasting durability even under harsh environmental conditions.
- High Efficiency: The vertical fluted structure enhances water exposure to air, ensuring the cooling tower operates at peak efficiency.
- Ease of Maintenance: The honeycomb design facilitates easier cleaning and maintenance, reducing downtime and improving the overall system efficiency.
Technical Specifications:
- Material: PVC (Other options: U-PVC & ABS)
- Color: Dark gray to black
- Fire Classification: M2 (Alternative: M1 for other materials)
- Module Dimensions:
- Width (stacking): 1000 mm (or custom multiples of 20 mm)
- Length: 1998 mm (or custom multiples of 55.5 mm)
- Height: 500 mm
- Sheet Thickness (before forming): 0.3 mm (Available in 0.35 to 0.6 mm)
- Specific Weight: 21.0 kg/m³ ± 5% (at 0.3 mm thickness)
- Sheet Pitch: 20 mm
- Fouling Rate Coefficient: 1.0 (base: SNCS=1.0)
- Emptying Factor: >95%
- Specific Heat Exchange Surface: 149.0 m²/m³
- Maximum Debris Size (Diameter): 17 mm
- Maximum Water Temperature (continuous operation with fan on): 55°C
- Maximum Total Suspended Solids: 50 ppm
- Maximum Salinity (sea water): 35 gr/l
- Support Methods: Suspended or laid on beams
Additional Options:
- Materials: U-PVC & ABS
- Temperature Resistance: Up to 80°C (for selected materials)
- Available in custom colors upon request
- Sheet thickness can range from 0.35 to 0.6 mm
- The corrugated sheets are solvent-welded or glued together to form modular packs
- On-site gluing option to reduce transportation costs for large volumes
This Vertical Counter Fluted Flow Cooling Tower Honeycomb PVC Film Fill provides an efficient, durable, and easy-to-maintain solution for cooling towers, ensuring excellent heat exchange performance and reliability in industrial environments.
