Product Description

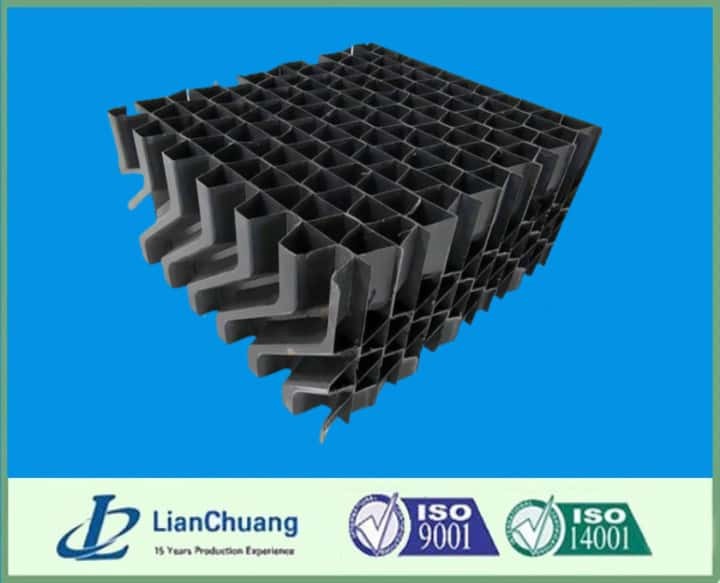

TEP130 and TEC130 are high-performance cellular drift eliminators designed for use in small to medium evaporative cooling towers. Engineered for crossflow applications, these modules provide exceptional droplet separation efficiency while maintaining minimal airside pressure drop—significantly reducing fan energy consumption.
Constructed from durable PVC with a pitch of 18–20mm, the TEP130 series features a layered structure optimized to capture large entrained water droplets within the air stream. This effectively prevents water loss and mitigates the escape of contaminants, ensuring environmental compliance and operational efficiency.
- Pitch: 18–20 mm
- Available Heights: 65 mm / 125 mm / 130 mm
- Flute Heights: 20 mm / 25 mm / 30 mm
- Sheet Thickness: 0.3 mm – 0.6 mm
- Length & Width: Randomized based on tower configuration
Key Benefits:
- High-efficiency droplet separation
- Very low pressure drop for improved energy savings
- Modular flexibility to meet customized dimensional requirements
- Quick and economical installation
- Available in multiple heights, flute sizes, and sheet thicknesses
Specifications:
| Model | Cell Size (inches) | Depth (inches) | Width (inches) | Length (inches) | Dry Weight (lbs/ft²) | Max Span (inches) |
|---|---|---|---|---|---|---|
| TEC130 | 0.71 | 4.92 | 31.50 | 11.81 – 94.49 (in 11.81" increments) | 0.92 | 39.37 |
| TEP130 | 0.71 | 4.92 | 27.56 | 11.81 – 94.49 (in 11.81" increments) | 0.90 | 39.37 |
