Product Description

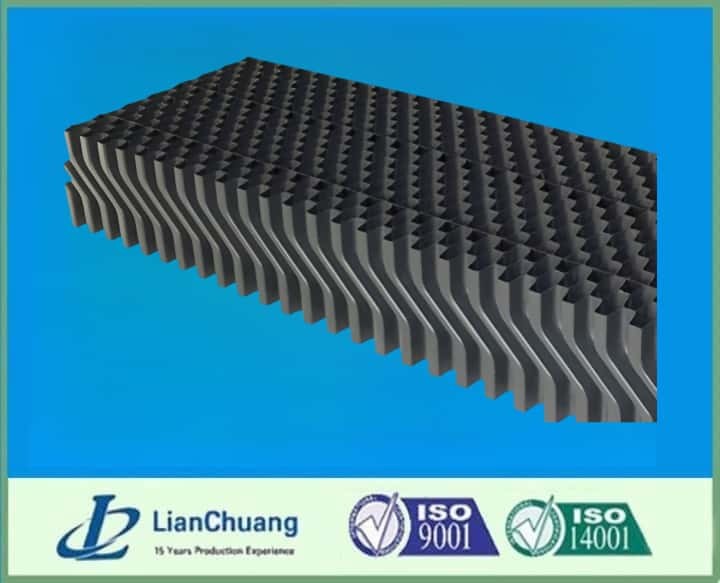

The D15 Nesting drift eliminator is designed for crossflow applications requiring very low drift levels with minimal airside pressure drop, which results in lower fan horsepower requirements. The nesting D15 model provides seamless drift removal by eliminating gaps between adjacent packs, ensuring more efficient water droplet capture and reducing drift bypass. It is made from high-quality PVC material and comes in various configurations to suit different application needs.
The latest generation of cellular-type drift eliminators is specifically engineered for crossflow applications, optimizing drift removal efficiency while minimizing pressure drop. The innovative closed-cell unit structure provides maximum water droplet capture surface area within a given volume.
Specifications
- Material: PVC
- Max Face Velocity: 4.5 m/s
- Drag Coefficient: 2.2
- Distance Between Supports: Max 600 mm
- Support Width: 10 mm
- Drift Loss: 0.001% of total circulating water.
- Shipping: Preferably shipped in nested sheet form and glued on-site to form blocks.
- Transportation: Low transportation cost.
- Pressure Drop: Very low.
This high-performance D15 nesting drift eliminator ensures long-lasting reliability and cost-effective operation for crossflow cooling towers, providing superior drift removal with minimal impact on fan efficiency.Available in 2 models based on pack stiffness, with lengths up to 10 feet. UV inhibitors are added for sunlight protection. Nesting design eliminates gaps between packs, preventing drift droplet bypass. Drift loss of 0.003% in circulating water flow (Test Method: CTI-HBIK Standard 140). Complies with CTI Standard 136.
