Product Description

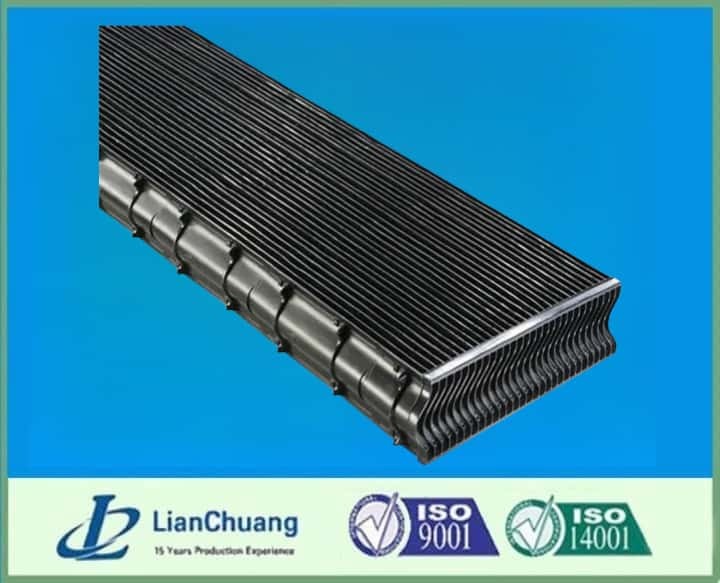

The DE097 Blade drift eliminator Modules are engineered to deliver high-efficiency drift control in counterflow forced-draft cooling towers. Constructed with precision-molded PVC or HPVC blades featuring a sinusoidal wave design, these modules ensure superior droplet capture by compelling the exhaust airflow to undergo three abrupt directional changes, effectively minimizing drift emissions. What distinguishes the DE097 from similar models like the DE080 and DE120 is the integrated aerodynamic deflector at the blade’s discharge edge. This design not only boosts airflow velocity but also redirects the exhaust at a 45° angle away from the intake fans—significantly reducing recirculation of hot, moist air.
The DE097 modules are fabricated from UV-stabilized PVC or high-temperature-resistant HPVC, offering exceptional durability under prolonged environmental exposure. These materials demonstrate strong resistance to corrosion, chemical attack, and biological degradation, making them suitable for challenging operating conditions. All materials used meet or exceed Cooling Technology Institute (CTI) Standard 136 and possess self-extinguishing properties, contributing to enhanced fire safety.
Key Technical Specifications
- Drift Loss Efficiency: ≤ 0.004% of circulating water, as per CTI-HBIK Standard 140
- Blade Thickness: 25 mils (0.64 mm)
- Dry Weight: 0.9 lbs/ft² (4.4 kg/m²)
- Maximum Recommended Span: 6 ft (1.8 m)
Product Features
- Modular, onsite assembly simplifies logistics and reduces freight costs—ideal for overseas projects
- Deflector-enhanced blade design accelerates discharge airflow and prevents warm air from re-entering the system
- Interlocking nesting system allows seamless integration with adjacent modules, ensuring no drift leakage between packs
- Versatile installation in both counterflow and crossflow cooling towers
- Tested performance guarantees compliance with CTI and international standards
Benefits
- Compliant with CTI Standard 136 for material performance and safety
- Low drift loss rate supports environmental and operational efficiency
- Reduces fan energy consumption by lowering airside pressure drop
- Enhances cooling tower performance by mitigating airflow recirculation
