Product Description

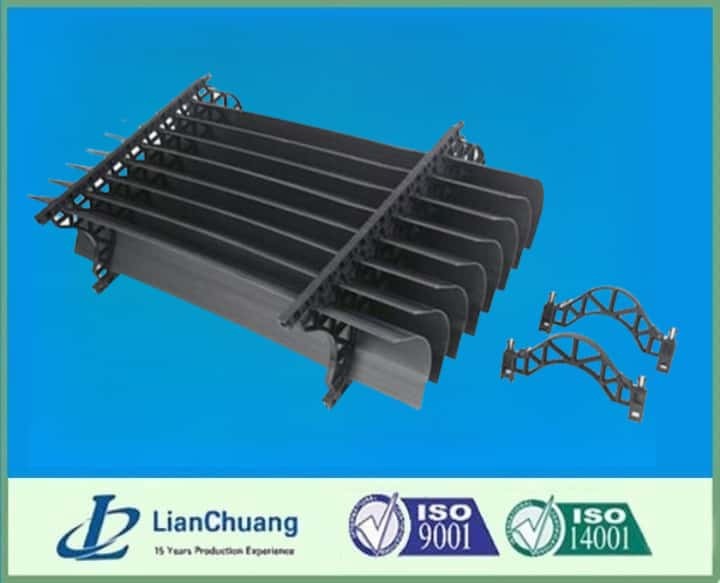

The DE188 Cooling Tower drift eliminator is a high-efficiency anti-drift solution constructed with sinusoidal wave blades and PP spacers. Designed for installation at the top of counterflow and crossflow cooling towers, it effectively captures water droplets from the exhaust airflow to reduce drift loss.
Made from durable PVC and PP materials, this drift eliminator offers maximum droplet separation with minimal pressure drop. The integrated wave spacer provides enhanced stiffness and structural support for long-span applications, reducing deflection and improving stability.
The modular design ensures easy installation using a pin-press connection system. It is simple to maintain and can be cleaned with high-pressure water jets. With UV-resistant additives and fire-retardant materials, the DE188 offers long-term durability while meeting environmental and safety standards.
Key Features
- Maximum drift capture through efficient wave blade design
- Low pressure drop and high airflow performance
- Lightweight, modular structure for easy handling
- Quick and secure installation with pin-press connectors
- UV-resistant and long service life
- Easy maintenance and cleaning with high-pressure equipment
Technical Specifications
- Model: DE188
- Product Name: PP PVC Anti-Drift Cooling Tower Drift Eliminator
- Material: PVC sheet (wave blade), PP spacer
- Length: Customizable, up to 6 meters
- Width: Various, customizable
- Height/Thickness: 185mm / 220mm (including spacer)
- Sheet Height: 40mm
- Connection Type: Pin pressed
- Max Service Temperature: 65–80°C (higher on request)
- Drift Rate: Maximum efficiency
