Plastic Super Torus Saddles

Time:
2020-12-12 09:37:04
View:
119

Product Description

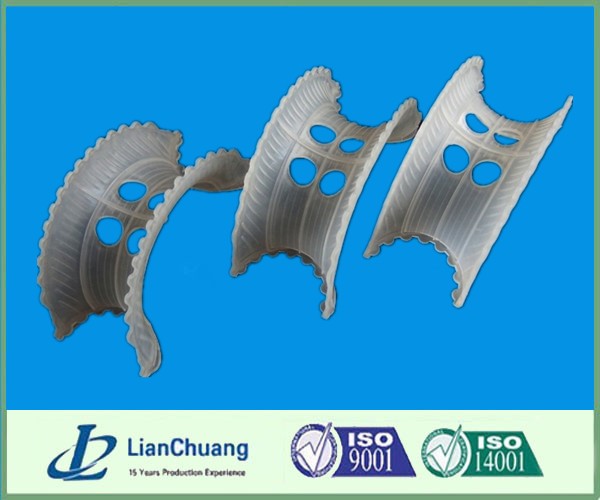

Plastic Super Torus Saddle's shape is similar like plastic intalox saddles, it change two ends into rectangle type contact surface. when gas flows upward, liquid will flow downward along with arc channel. This movement way will directly reduce wall flow's happening. However, arched external frame also cause overlapping & briding's happen. This improvement will reduce bridging's happen. super torus saddles has better capacity and lower pressure drop. it also have good liquid distribution and igh mass transfer efficiency.

Material can be made of  polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF) per customer request. Plastic super torus saddle packing can widley applied in absorption, scrubbing, and stripping services, degassing and drying tower. Feature: 1. High liquid hold-up and residence time. 2. Good Gas & Liquid distribution. 3. Good performance and low pressure drop.

Specification:

    Size                    Weight                    Bulk number                    Specific area                    Void rate
                    inch                    mm                    Kg/m3                    Pieces/m3                    m2/m3                    %
                    1                    25                    70                    36,600                    240                    90
                    2                    50                    62                    5,600                    110                    94
                    3                    76                    41                    1,245                    90                    96

-
