Product Description

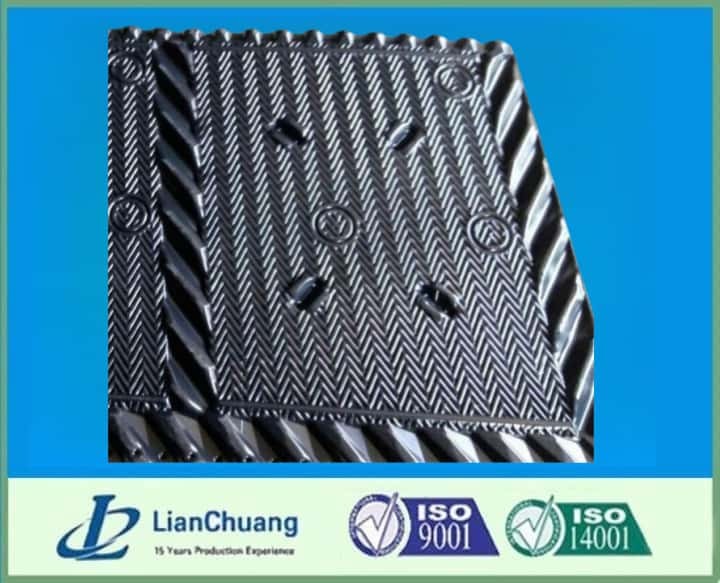

M106 Cooling Tower Fill is a high-efficiency, film-type fill element designed for crossflow cooling tower systems. With a bottom-supported structure, it enables water to flow uniformly along thermoformed PVC sheets, forming a thin film that offers significantly more water surface area per unit volume than conventional splash-type fills.
This configuration ensures superior cooling performance—allowing systems to achieve lower cold water temperatures without increasing fan power. Alternatively, users may reduce fan horsepower while maintaining the same thermal output, making the M106 cooling tower fill both energy-efficient and performance-optimized.
Constructed from fire-retardant PVC, the M106 fill meets a maximum flame spread rating of 25 per ASTM E-84, minimizing fire hazards. Its wide sheet spacing prevents clogging and ensures a long service life with low maintenance. The material is highly resistant to rot, corrosion, and biological decay, ensuring durability in demanding environments.
Key Features of M106 Cooling Tower Fill
- Improved water distribution across the fill surface
- High thermal transfer efficiency for enhanced cooling performance
- Fabricated from fire-retardant PVC with proven durability
- Certified to meet Cooling Tower Institute (CTI) standards
- Wide sheet spacing design prevents clogging and fouling
- Long service life with minimal maintenance requirements
- Specifically designed for crossflow cooling tower applications
Weight Specifications for Sigma M106 Cooling Tower Fill (PVC Material)
| Nominal Gauge | Thickness (mm) | Dry Weight (lbs/ft³) | Dry Weight (kg/m³) |
|---|---|---|---|
| 10 mils | 0.25 mm | 1.8 | 28.8 |
| 15 mils | 0.38 mm | 2.6 | 41.6 |
